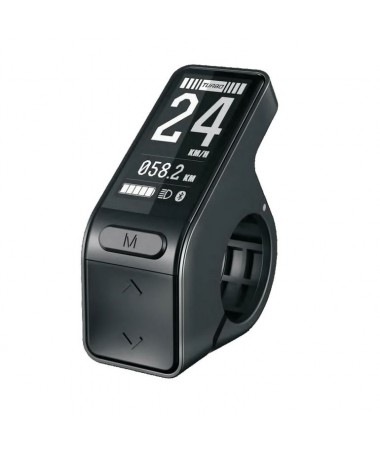

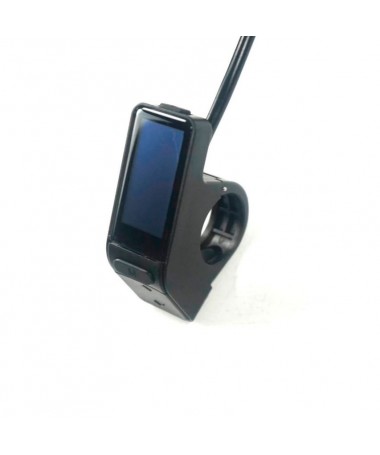

SW102 Display for TSDZ2 6 PIN

SW102 Display for TSDZ2 6 PIN

Technical specification:

6 PIN TSDDZ2 female connector (requires TSDZ2 6 PIN controller),

Power supply: DC 36V /48V /52V.

Rated current: 12mA @36V.

Shut-off leakage current: <1uA.

Screen specification: 1.3 inch OLED.

Communication method: UART (standard).

Operating temperature: -20°C ~ 60°C.

Storage temperature: -30°C ~ 80°C.

Protection class: IP65.

Functions overview:

Four buttons for easier operation.

Speed display: real-time speed (speed), maximum speed (max), average speed (AVG).

4 levels of support (ECO, TOUR, SPORT, TURBO).

Light Indicator: Lights on/off status indicator

Mileage display: Subtotal mileage (TRIP), total mileage (ODO).

Riding time display (TRIP TIME).

6 km/h walk assist function.

Error codes display
